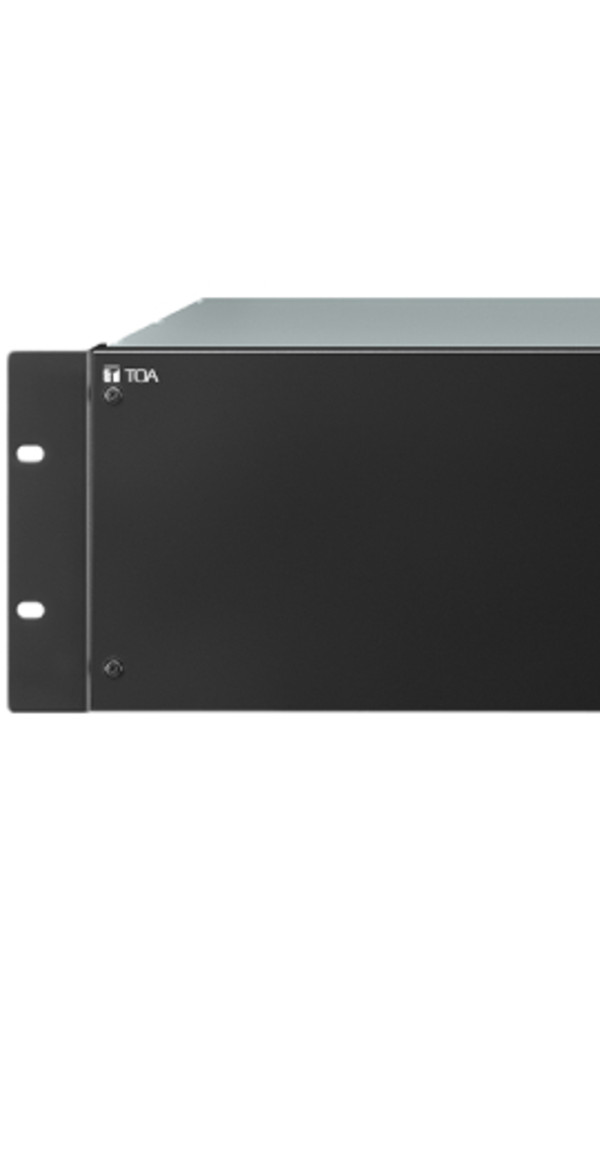

VX-3150DS power supply manager แหล่งจ่ายไฟฉุกเฉินที่ใช้สำหรับระบบ VX-3000, SX-2000, VX-2000 และ VM-3000 เป็นแร็คเมาท์ 3U ที่มาพร้อมกับเครื่องชาร์จแบตเตอรี่และแหล่งจ่ายไฟแบบสวิตชิ่งซึ่งช่วยให้มีพื้นที่ชั้นวางประหยัดพลังงานและมีน้ำหนักเบา VX-3150DS มีการบำรุงรักษาที่ง่ายดายเนื่องจากสวิตช์การตั้งค่าฟังก์ชั่นและสวิตช์ปิดการทำงานภายในแผงด้านหน้าและสามารถทำการเปลี่ยนฟิวส์ที่ด้านหลังของเครื่อง The VX-3150DS is an Emergency Power Supply Manager used for the VX-3000, SX-2000, VX-2000 and VM-3000 systems. It is a 3U rack-mount unit equipped with a battery charger and a switching power supply, which contribute to rack space, energy-saving and lightweight design. The VX-3150DS features easy maintenance as function setting switch and shutdown switch inside the front panel, and fuse replacement can be performed on the unit's rear side. Specification | Power Source | 220-230 V AC, 50/60 Hz |
|---|
| Power Consumption | 1460 W max in total (at rated output with charging) |
|---|
| DC Power Output (AC mode) | Rated output: 1140 W (total DC power output)
Peak output: 1280 W (total DC power output) |
|---|
| Current Specification | Maximum output current from the battery: 25 A
Rated maximum continuous output current, I max. a: 25 A
Rated maximum short duration output current, I max. b: 25 A
Rated minimum output current, I min: 0 A
Ripple Voltage at I max. b: 4 V max |
|---|
| DC Power Output | 8 x 31 V (19-33 V) 25 A max. each, M4 screw terminal,
distance between barriers: 11 mm (0.43")
3 x 31 V (19-33 V) 5 A max. each, removable terminal block (3 × 2 pins)
1 x 24 V (16-25 V) 0.3 A max., removable terminal block (1 × 2 pins) |
|---|
| Charging Method | Temperature compensated trickle charging |
|---|
| Charging Output Voltage | 27.3 V ±0.3 V (at 25 ℃ (77 ゜F))
Temperature correction coefficient: -40 mV/℃ |
|---|
| Battery Connection | 1 pair of positive and negative terminals
Applicatble cable diameter: AWG 6 - AWG 0 (AWG 1/0) (16 mm² - 50 mm²)
Line resistance within 4m Ω/total |
|---|
| Applicable Battery | Panasonic: LC-X1265PG/APG (65 Ah), LC-XA12100P (100 Ah)
Yuasa: NP65-12 (65 Ah), NPL100-12 (100 Ah) |
|---|
| Control Connector DS LINK IN/OUT | RJ45 female connector for connecting the system and cascade connection
Shielded Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC Power status, charging circuit failure, battery failure, and communication |
|---|
| Panel Indicator | AC power IN (Green), Charging (Green), Battery power (Green), Battery connect (Green), Battery condition (Green) |
|---|
| Operating Temperature | -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F) |
|---|
| Operating Humidity | 90 %RH or less (no condensation) |
|---|
| Finish | Panel: Surface-treated steel plate, black, 30% gloss, paint |
|---|
| Dimensions | 482 (W) x 132.6 (H) x 400.5 (D) mm (18.98" × 5.22" × 15.77") |
|---|
| Weight | 9.0 kg (19.84 lb) |
|---|
| Accessory | Fuse (T8A H) …1, Fuse (T6.3A L) …2, Blade fuse (35 A) …2,
Rack mounting screw (with washer) …4, Power cord (2 m (6.56 ft)) …2,
Fastener hook …4, Fastener loop …4, Thermal insulating sheet …1,
CAT5-STP cable (3 m (9.84 ft)) …1, Ferrite clamp …1 |
|---|
| Fuse Rating | Blade fuse (35 A), Fuse (T8A H), Fuse (T6.3A L) |
|---|
|
|
