Yamaha DBR12 ลำโพง 12 นิ้ว พร้อมเครื่องขยายเสียง 1000 W. 2-way, Bi-amp  Powered Speaker (1x12")

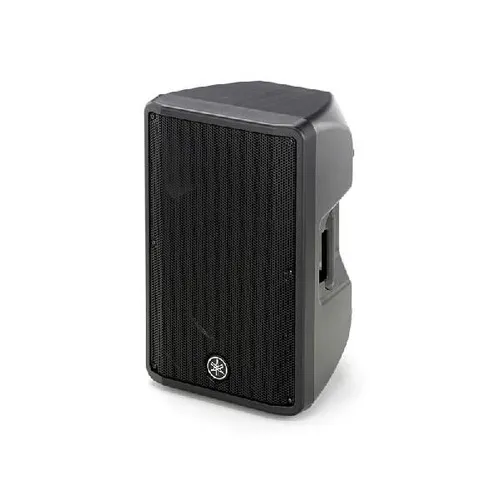

 Yamaha DBR-12 Powered Speaker (1x12")

 Features

High-Efficiency 1000W Class-D Amplifiers

The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
*DBR10 has an output level of 700W.

Custom Designed Transducer

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

*DBR10 features a 1" compression driver.

A Rugged, Highly Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

Smart Enclosure Design for Floor Monitoring

The DBR12 delivers Best-in-Class maximum output (131 dB SPL) with minimal distortion, using two separate power amplifiers designed specifically for the drivers. 800 watts for the woofer and 200 watts available for the high frequency driver combined with the latest DSP to control and protect the system assure performance and reliability in a compact package.

• Yamaha products. Yamaha DBR-12 Powered Speaker (1x12") Technical Description -
• System Type: 2-way, Bi-amp Powered Speaker, Bass-reflex Type
• Frequency Range: (-10dB) 52 Hz-20 kHz
• Coverage Angle: (Horizontal x Vertical) H90" x V60" Constant Directivity Horn
• Measured Maximum SPL (Peak) IEC Noise@1m: 131 dB SPL
• Crossover: 2.1 kHz
• Power Rating Dynamic: 1000 W (LF: 800 W, HF: 200 W)
• Power Rating Continuous: 465 W (LF: 400 W, HF: 65 W)
• Power Consumption: 74 W
• Components LF: 12" Cone, 2" Voice Coil
• Components HF: 1.4" Voice Coil, Compression Driver
• Dimensions: (W x H x D, Including Rubber Feet) 376 x 601 x 348 mm (14.8" x 23.7" x 13.7")
• Net Weight: 15.8 kg (34.8 lbs)
• I/O Connectors:
• Input INPUT1: Combo x1, INPUT2: Combo x 1 + RCA-pin x 2
• Output XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Input Sensitivity: (Level: Center) INPUT1: LINE: +10 dBu, MIC: -22 dBu, INPUT2: +10 dBu
• Maximum Input Level: INPUT1: LINE: +24 dBu, MIC: -8 dBu, INPUT2: +24 dBu

Yamaha products.

• Shipping Weights and Dimensions
• Shipping Weight: 45 lbs
• Shipping Dimensions: 27 x 19 x 17 in
