YAMAHA EMX5

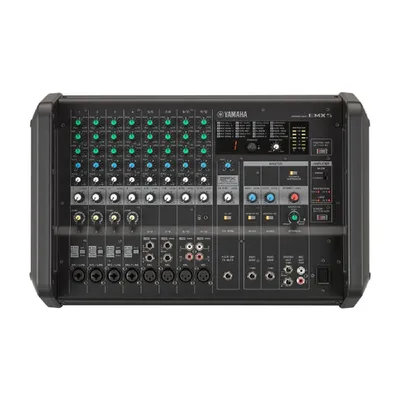

YAMAHA EMX5 เพาเวอร์มิกซ์ Portable Powered Mixers

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.

2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)

2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)

Powerful & High Efficiency Class-D Amplifier

12 Line Inputs (8 mono + 4 stereo)

High-Z input (channel 4) to connect guitars or basses directly

1-Knob Master EQ™

Onboard Feedback Suppressor

Comprehensive, professional 24 different effects

Metal chassis for extended operation and robustness

Large handles for extreme portability and protection

Universal power supply eliminates concern on power fluctuations

Optional rack-mount kit available

Specs.

Outline

I/O Inputs TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)

Phantom power +48 V

Outputs SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]

Control and others FOOT SWITCH : Effect Mute on/off

Bus Stereo: 1, AUX: 2 (Including FX)

Input Channel Function PAD 30 dB (CH1-4)

Hi-Z Supported (CH4)

HPF 80 Hz, -12 dB/oct. (CH1–3)

COMP 1-knob COMP (CH1–4)

EQ HIGH 10 kHz +15 dB / -15 dB (Shelving)

EQ MID 2.5 kHz +15 dB / -15 dB (Peaking)

EQ LOW 100 Hz +15 dB / -15 dB (Shelving)

On-board processors DSP SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ

On-board amplifiers Maximum output power @4ohms 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W

Maximum output power @8ohms 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W

Level Meter 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)

General specifications

Frequency response Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz

Total harmonic distortion Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)

Hum & noise level Equivalent input noise -117 dBu (Noise is measured with A-weighting filter)

Residual output noise Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)

Crosstalk -85 dB (1 kHz, Measured with 1 kHz band pass filter)

Protection circuit Load protection DC-fault

Amplifier protection Over heat protection, Over current protection, Integral power protection

Power supply protection Over heat protection, Over current protection

Power requirements AC 100-240V, 50Hz/60Hz

Power consumption 42 W (Idle) / 210 W (1/8 Power)

Dimensions W 465 mm (18 5/16")

H 308 mm (12 1/8")

D 325 mm (12 13/16")

Net weight 9.5 kg (20.9 lbs)

Accessories Owner’s Manual, Technical Specifications, AC power cord (2.5 m)

Options Foot switch: FC5, Rack-mount brackets: RK-EMX7

Others Operating Temperature : 0 to +40℃

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)
