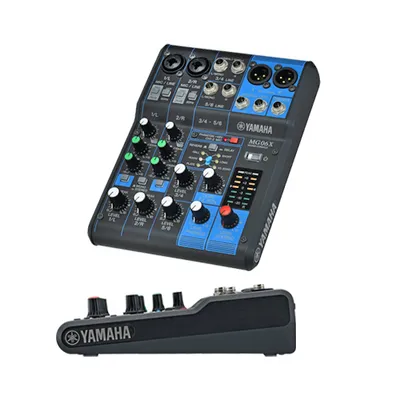

YAMAHA MG06x

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
20


20

รหัส : MG06x
ยี่ห้อ : YAMAHA
รุ่น : MG-06x
ราคาปกติ :  7,440.00 บาท
ราคาพิเศษ :  6,200.00บาท
รายละเอียดย่อ : YAMAHA MG 06x มิกเซอร์ 6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

YAMAHA MG 06x มิกเซอร์ 6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus

 Features

  • 6-Channel  Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
  • Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
  • Net Weight: 0.9 kg (1.98 lbs.)
Specifications
Mixing capabilityOn-board processorsSPX algorithm: 6 programs
I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]2
Stereo[LINE]2
Output ChannelsSTEREO OUT2
PHONES1
BusStereo: 1
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total harmonic distortion0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-88 dB
Power requirementsPA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption12 W
DimensionsW149 mm (5.9")
H62 mm (2.4")
D202 mm (7.9")
Net weight0.9 kg (1.98 lbs.)
AccessoriesIncluded Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
OthersOperating Temperature: 0 to +40˚C
