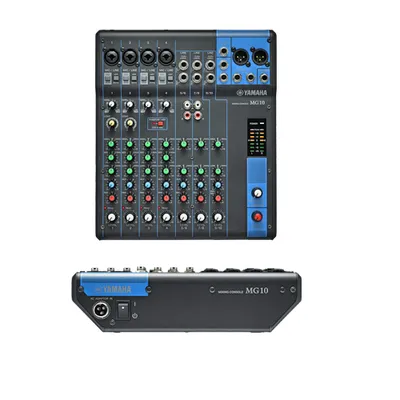

YAMAHA MG 10

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
7


7

รหัส : MG 10
ยี่ห้อ : YAMAHA
รุ่น : MG 10
ราคาปกติ :  9,000.00 บาท
ราคาพิเศษ :  8,200.00บาท
รายละเอียดย่อ : YAMAHA MG 10 มิกเซอร์ 10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

YAMAHA MG 10 มิกเซอร์ 10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)

10 Channel Mixing Console

Features

  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
  • Net Weight: 1.9 kg (4.19 lbs.)
Specifications
I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]4
Stereo[LINE]3
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND1
BusStereo: 1, AUX[FX]: 1
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
COMP1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-83 dB
Power requirementsPA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption22.9 W
DimensionsW244 mm (9.6")
H71 mm (2.8")
D294 mm (11.6")
Net weight1.9 kg (4.19 lbs.)
AccessoriesIncluded Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
OthersOperating Temperature: 0 to +40˚C
