YAMAHA MG 20xu

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
14


14

รหัส : MG 20xu
ยี่ห้อ : YAMAHA
รุ่น : MG 20xu
ราคาปกติ :  51,600.00 บาท
ราคาพิเศษ :  43,000.00บาท
รายละเอียดย่อ :YAMAHA MG 20XU มิกเซอร์ 20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

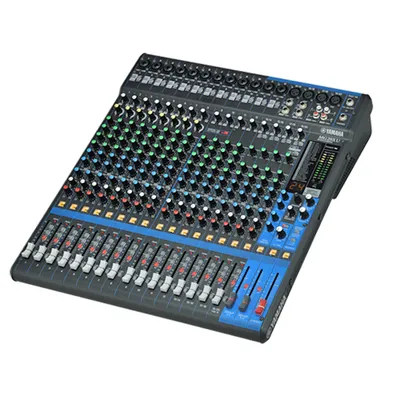

YAMAHA MG 20XU มิกเซอร์ 20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

Features

  • 20-Channel Mixing Console
  • Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
  • Net Weight: 7.1kg (15.7 lbs.)
Specifications
Mixing capability
On-board processors		SPX algorithm: 24 programs,
PARAMETER control:1,
FOOT SW:1 (FX RTN CH on/off)
I/OPhantom power+48 V
Digital I/OUSB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input ChannelsMono[MIC/LINE]12
Mono/Stereo[MIC/LINE]4

Output Channels		STEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND4
GROUP OUT4
BusStereo: 1, GROUP: 4, AUX: 4 (incl. FX)



Input Channel Function		PAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

COMP		1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB,
Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOWGain: +15 dB/-15 dB,
Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

Total harmonic distortion		0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu
(STEREO OUT, STEREO master fader: Min)
Crosstalk-78 dB
Power requirementsAC 100 – 240 V, 50 / 60 Hz
Power consumption36 W

Dimensions		W444 mm (17.5")
H130 mm (5.1")
D500mm (19.7")
Net weight7.1kg (15.7 lbs.)
OthersOperating Temperature: 0 to +40˚C
