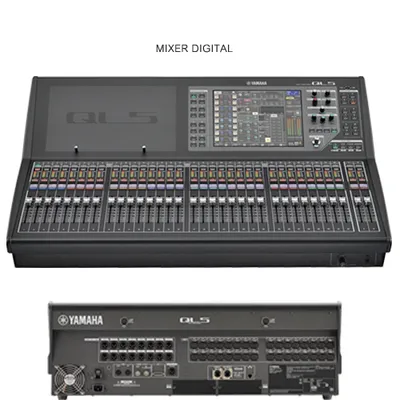

YAMAHA QL5 mixer digital 32 + 2 fader configuration in a compact, rack mountable unit.

Features

• Mix ch. : 32 mono, 8 stereo.
• Buses : 16 mix, 8 matrix (Input to Matrix supported).
• Local I/O: 16 in, 8 out.
• Fader conder configuration : 16 + 2 (Master).
• Every component contributes to superior sonic precision
• VCM technology and rupert neve approved
• Revolutionary dan dugan automatic mixer buil in
• Refined interface for intuitive control
• Straight forward “touch & turn”  operation
• Advanced features backed by efficient design
• Faders designed for fit, feel and  visual feedback
• Selected channel controls for direct, instant access
• High visibility channel names and colors
• Comprehensive fader bank section
• Flexible network capability in an all in one console
• Superior  dante networking built in
• Redundancy for reliability
• Port to port to port  enhances  systems  versatility
• Capable systems  with fewer devices
• I/O rack sharing  without gain complications
• 2-track / multitrack recording and playback
• Convenient  2-track recording  to usb flash drive
• Smooth support ofr multitrack  recording
• Expandable capacity and functionality
• Cascade for large systems
• Tight  ipad & computer integration
• 300 scene  memories
• Versa tile input  & output delays
• Ample  EQ  & dynamics processing
• 16 DCA groups
• 8 mute groups
• 12 user defined keys
• Multiple user key set
• 5 in / 5 out  GPI interface

Specifications

• Sampling frequency rate Internal: 44.1kHz / 48kHz
• Sampling frequency rate external: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
• Signal delay: Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz
• Fader: 100mm motorized, Resolution=1024steps, +10dB to -138dB, -∞dB all faders
• Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min
• Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT
• Dynamic range: 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min
• Hum & noise level / Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max
• Hum & noise level / Residual output noise: -88dBu, Residual output noise, ST master off
• Crosstalk: -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min.
• Power requirements: 100-240V 50/60Hz
• Power consumption: 200w
• Dimensions: W: 828mm(32.6in) H: 272mm(10.7in) D: 563mm(22.2in)
• Net weight: 14.7kg(32.4lb)
• Accessories: Owner’s Manual, power cord, DVS license sheet
• Options: Mini-YGDAI cards *2 , Gooseneck Lamp LA1L, Nuendo Live
• Others: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
