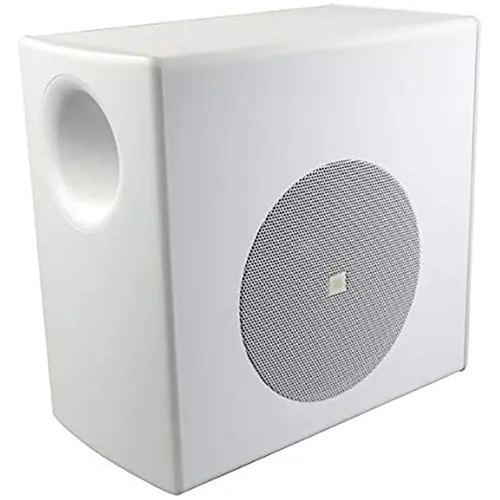

JBL Control 50S/T-WH 150W 8" Surface-Mount Subwoofer, White

The JBL Control 50S/T is a professional-quality subwoofer ideal for use in installation applications. The slim, unobtrusive cabinet contains an 8" long excursion driver with a high-mass cone and a 4-layer copper voice coil for extended low frequency response and high motor strength. The aluminum former provides excellent transient response, while a rubber half roll surround provides enhanced bass performance.

The subwoofer has power handling capability of 150W of continuous power. It has selectable 70/100V output for distributed lines and also has low impedance operation. The subwoofer can be paired with 2 or 4 satellite speakers, depending on your needs. Mounting brackets are included for attaching the subwoofer to a wall.

Features

• Sleek, stylish design fits into a wide variety of decors
• Durable plywood construction with MDF port and terminal panels and a zinc-plated metal grille
• Large 8" long-excursion woofer with a high-mass cone, 4-layer copper voice coil, aluminum former and rubber half roll surround for exceptional bass performance
• 150W of continuous power handling capability for a strong performance
• Selectable 70/100V distributed line outputs, as well as low impedance operation
• Can be used with 2 or 4 satellites for versatility
• Can mix and match with Control Contractor 40 in-ceiling models

Specs

• Frequency Range (-10 dB) 32 Hz - 200 Hz
• Frequency Response (±3 dB) 50 Hz - 150 Hz
• Power Capacity 300 Watts Continuous Program Power (2 hrs)
• 150 Watts Continuous Pink Noise (2 hrs)
• 200 Watts Continuous Program Power (100 hrs)
• 100 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity (2.83V, 1m) 95 dB (near corner), 89 dB (center of wall)
• Rated Maximum SPL (1m) 115 dB average, 121 dB peak (near corner)
• 109 dB average, 115 dB peak (center of wall)
• Nominal Impedance 8 ohms (in bypass/thru mode)
• Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
• Driver 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
• Input Connectors Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm)
• Material Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal
• Wall Bracket 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
• Dimensions (H x W x D) Cabinet: 356 x 391 x 203 mm / 14.0 x 15.4 x 8.0"
• Wall Bracket: 15 mm / 0.59" (deep)
• Weight 9.0 kg (20 lbs)
