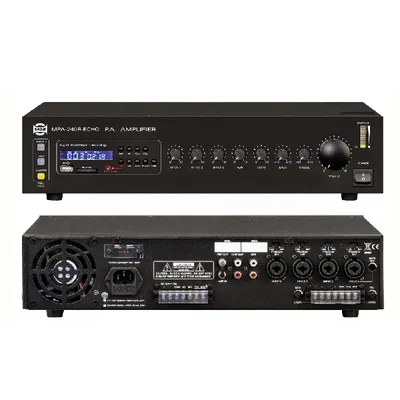

MPA-240W RST เครื่องขยายเสียง บันทึกเสียงได้ Mixer Amplifier 240W, MP3 Player with "Recording SERIES MULTIPLEX PROFESSIONAL AMPLIFIERS

Description

The MPA-Series multiplex professional amplifier are designed for specific public address field.

MPA-Series has various acoustic modules, such as MP3 player and recording, 4 zones paging selection and ECHO function.

This series has excellent performance and provides high quality sound, with easy oprating design.

MPA-Series has various acoustic modules, such as MP3 player and recording, 4 zones paging selection and ECHO function.

This series has excellent performance and provides high quality sound, with easy oprating design.

Technical Specifications

• Power Output (at 4Ω) RMS 240W / MAX 330W
• Frequency response 80Hz-16KHz (±3dB)
• Power supply AC 115V/230V 50Hz / 60Hz switchable; DC 24V
• Input / sensitivity
• Mic: -52dBv balanced / Phantom: -52dBv / 24V balanced / Line: -10dBv unbalanced /
• Aux: -6dBv unbalanced / AMP. in: 0dBv unbalanced / TEL: -10dBv balanced
• Harmonic distortion ≦1%
• S/N Ratio MIC≧65dB / AUX≧80dB / PHANTOM≧65dB / LINE: ≧75dB
• Output (Ω) COM, 4Ω
• Output (V) 25V, 70V, 100V
• Zone out 4 Zones paging selection Z 1~Z 4: 100V (333Ω)

Controls

• 1 AUX volume control, 1 MASTER volume control, 2 TREBLE/BASS controls,                                                             4 Input volume controls, TEL. input &MONITOR volume controls
• 5 Zone out selector switch (for item no. with "S")
• 3 REC. selector switch (for item no. with "R")
• BGM module MP3-300: MP3 player
• MP3-400: MP3 player+Recording
• ECHO function
• Dimension(W×D×H) 420x260x88mm (16.5"x10.2"x3.5")
• Weight (Approx.) 11kg (24.4 lb)
