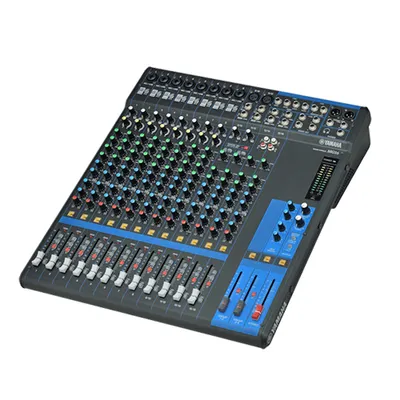

YAMAHA MG 16

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
11


11

รหัส : MG 16
ยี่ห้อ : YAMAHA
รุ่น : MG 16
ราคาปกติ :  30,000.00 บาท
ราคาพิเศษ :  25,000.00บาท
รายละเอียดย่อ : YAMAHA MG 16 มิกเซอร์ 16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

YAMAHA MG 16 มิกเซอร์ 16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

Features

  • 16-Channel  Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • 6.6 kg (14.6 lbs.)

Specifications

I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]8
Mono/Stereo[MIC/LINE]2
Stereo[LINE]2
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND4
GROUP OUT4
BusStereo: 1, GROUP: 4, AUX: 4
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Total harmonic distortion0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk-78 dB
Power requirementsAC 100 – 240 V, 50 / 60 Hz
Power consumption30 W
DimensionsW444 mm (17.5")
H130 mm (5.1")
D500 mm (19.7")
Net weight6.6 kg (14.6 lbs.)
AccessoriesIncluded Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
OthersOperating Temperature: 0 to +40˚C
