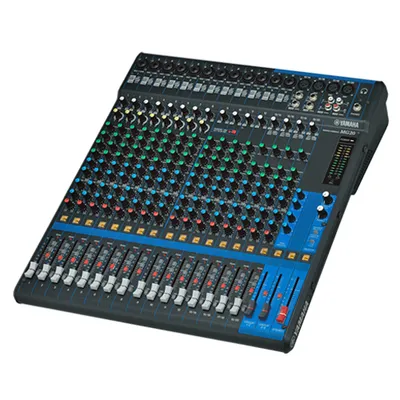

YAMAHA MG 20

 โพสต์เมื่อ : 26 ส.ค 2567 เวลา 15:23 น.
13


13

รหัส : MG 20
ยี่ห้อ : YAMAHA
รุ่น : MG 20
ราคาปกติ :  47,400.00 บาท
ราคาพิเศษ :  39,500.00บาท
รายละเอียดย่อ : YAMAHA MG 20 มิกเซอร์ 20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

YAMAHA MG-20 มิกเซอร์ 20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

Features

  • 20-Channel Mixing Console
  • Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
  • Net Weight: 6.9kg (15.2 lbs.)
Specifications
I/OPhantom power+48V
Input ChannelsMono[MIC/LINE]12
Mono/Stereo[MIC/LINE]4

Output Channels		STEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND4
GROUP OUT4
BusStereo: 1, GROUP: 4, AUX: 4


Input Channel Function		PAD26 dB(Mono)
HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)


COMP		1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB,
Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOWGain: +15 dB/-15 dB,
Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping(Mono)
Level Meter2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6,
-10, -15, -20, -25, -30 dB]

Total harmonic distortion		0.03 % @ +14dBu (20 Hz to 20kHz),
GAIN knob: Min,
0.005 % @ +24dBu (1kHz),
GAIN knob: Min
Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) ,
refer to the nominal output level @ 1 kHz,
GAIN knob: Min

Hum & noise level		Equivalent input noise-128 dBu (Mono Input Channel,
Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT,
STEREO master fader: Min)
Crosstalk-78 dB
Power requirementsAC 100 – 240 V, 50 / 60 Hz
Power consumption36 W
DimensionsW444 mm (17.5")
H130 mm (5.1")
D500 mm (19.7")
Net weight6.9kg (15.2 lbs.)

Accessories		Included Accessory: Owner’s Manual, Technical Specifications,
AC power cord, Rack-mount kit
OthersOperating Temperature: 0 to +40˚C
