รหัส : AD-CI52T
ยี่ห้อ : QSC
รุ่น : AD-CI52T
ราคาปกติ :  7,550.00 บาท
ราคาพิเศษ :  6,040.00บาท
เว็บไซต์เกี่ยวข้อง : http://qsc.com/products/loudspeakers/acousticdesign_ceiling_mount/AD-Ci52T/
รายละเอียดย่อ :
ลำโพงติดเพดาน ติดฝ้า Acousticdesign Surface Mount Loudspeakers,ceiling speaker,weather-resistant design,70/100

ราคาพิเศษ สอบถามโทร 080-6144774 , 02-9810944

รายละเอียดทั้งหมด

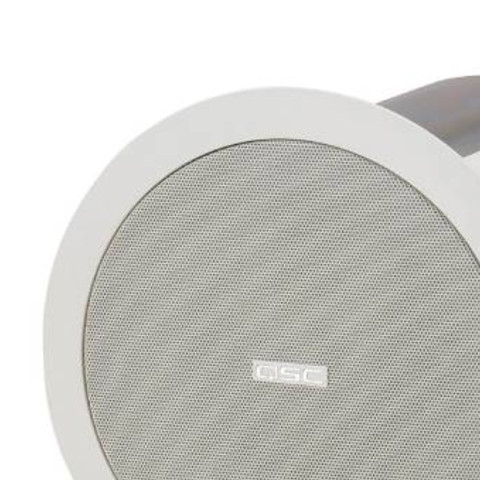

QSC AD-CI52T ลำโพงติดเพดาน ติดฝ้า Acousticdesign Surface Mount Loudspeakers,ceiling speaker,weather-resistant design,70/100

PRODUCT HIGHLIGHTS

  • Sealed Can Design
  • 5.25" Fiberglass Woofer
  • 1" Titanium Dome Tweeter
  • Weather-Resistant Design
  • Multi-Tap Transformer with 8 Ohm Bypass
  • Mounting Hardware Included

 Package Includes: 2 qty. AD-CI52T or AD-CI52ST loudspeakers 2 qty. C-ring and tile rails 2 qty. Round grilles (white, paintable)

The AD-CI52T, part of the AcousticDesign series of in-ceiling speakers from QSC provides high-quality audio in a compact and weather-resistant design. The sealed enclosure is ideal for installations in offices, retail venues, hotels, airports, and more. The 5.25" fiberglass woofer and 1" titanium dome tweeter provide high-fidelity, wide-bandwidth sound to provide full, rich sound with low distortion.
The speaker has a 70/100V multi-tap transformer that also offers an 8 ohm bypass mode, allowing you to connect to virtually any professional sound system for terrific versatility. The white enclosure and steel speaker grille can be painted to match any decor, and all required mounting materials are included.

Compact enclosure is ideal for unobtrusive installations in offices, retail venues, hotels, airports, and more

5.25" fiberglass woofer and 1" titanium dome tweeter provide high-fidelity, wide-bandwidth sound to provide full, rich sound with low distortion. They also share the same driver technology as AD-S loudspeakers for seamless integration

Weather-resistant and fully-sealed enclosure

70/100V multi-tap transformer also offers an 8 ohm bypass mode, allowing you to connect to virtually any professional sound system for terrific versatility

White enclosure and speaker grille can be painted to match any decor

All required mounting materials are included

SPECIFICATIONSAD-CI52T
ConfigurationCompact two-way, sealed enclosure
Transducers   Low Frequency Transducer
     High Frequency Transducer
5.25" (13 mm) Weather-resistant, low distortion fiberglass cone woofer, 25 mm voice coil, rubber surround
1" titanium dome tweeter, neodymium magnet

Frequency Range 1   Frequency Response (±3 dB)   Useable Frequency Range    (-10 dB)85 Hz - 20 kHz 65 Hz - 20 kHz
Maximum Output 2   Continuous   Peak102 dB SPL 108 dB SPL
Nominal Impedance8 ohms
Power Capacity 340 W (100 hours IEC)
Recommended Max Amp Power80 W RMS
Sensitivity 486 dB, 2.83 V, 1 m, flush mounted (2pi)
Nominal Coverage90° conical pattern
Bass LoadingSealed
TRANSFORMERS
TypeCustom low distortion laminated core, wide bandwidth design
Taps70/100V: 30, 15, 7.5, 3.8 Watts and 8 ohms selected by switch
Insertion Loss0.8 dB, averaged over 50 Hz - 20 kHz bandwidth (30 W tap)
DistortionLess than .01% THD above 100 Hz, 0.2% at 50 Hz (30 W tap)
Bandwidth40 - 20 kHz (-1 dB, all taps)
ENCLOSURE
MaterialInjection molded high impact polystyrene baffle on a steel enclosure
FinishWhite (paintable)
GrillHeavy duty powder coated steel
Connectors4-pin Euro terminals in fire protective sub-chamber
Mounting HardwareRails and brackets for ceiling tile installation
Weight7.5 lbs (3.4 kg) net, each 24 lbs (10.9 kg) shipping, per pair
