RCF P2110-T

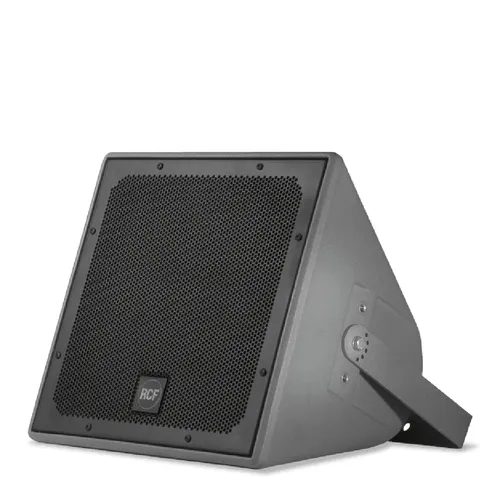

RCF P2110-T Weatherproof Coaxial Two Way Speaker

- ลำโพงแบบโคแอ๊คเชี่ยน มีเสียงแหลมตรงกลาง

- ลำโพงวูฟเฟอร์ ขนาด 10 นิ้ว, ลําโพงโคแอ๊คเชี่ยน 1 นิ้ว

- ลำโพงทนกำลังขับสูงสุด 800 วัตต์

- การตอบสนองความถี่ 90Hz - 20kHz

รายละเอียด :

RCF P2110-T 10" 800W Weatherproof Coaxial Two Way Speaker

The P2110-T is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1” RCF Precision Neodymium compression

driver with a 1.50” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected.

The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. The front logo is in aluminium and rotatable.

The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing.

The system features a selectable line transformer for 70 - 100 Volt applications. P 2110-T is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

Features :

Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55

Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing

Stainless steel bracket

One 10" high-output LF transducer with 2" voice coil

One RCF Precision Neodymium 1" Compression Driver with 1.5" voice coil

90° x 40° constant directivity horn

Built in passive crossover and selectable line transformer

10° X 20° enclosure sides for array configurations

Active Mosfet Compression Driver Protection

LICC (Low Impedance Compensated Crossover) network

12 brass suspension points (M8)

Specifications :

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB : 95 Hz ÷ 20000 Hz

Max SPL @ 1m : 124 dB

Horizontal coverage angle : 90°

Vertical coverage angle : 40°

Directivity index; Q : 11

System Sensitivity : 95 dB

Nominal Impedance : 16 Ω

Power Handling : 200 W

Peak Power Handling : 800 W

Recommended Amplifier : 400 W

Protections : Dinamyc

Crossover frequencies : 2000 Hz

TRANSDUCERS

Compression Driver : 1" HF driver, 1,5" voice coil

Nominal Impedance : 8 Ω

Input Power Rating : 25 W AES

Sensitivity : 106 dB

Woofer : 10" woofer, 2.5" voice coil

Nominal Impedance : 16 Ω

Input Power Rating : 180 W AES

Sensitivity : 95 dB

INPUT SECTION

Input connector : 5m, 4-adriges Neopren Kabel

Constant voltage transformer : 70/100

Power Selection : 70V/30W ,15W , 100V/60W, 30W

CABINET

Cabinet Material : Polyethylene rotomoulded

Hardware : 12 x M8 inserts+ U-brackets and pair of spacers

Grille : Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing

Colour : Grey

PHYSICAL SPECIFICATIONS

Height : 350 / 13.78 mm/inch

Width : 350 / 13.78 mm/inch

Depth : 320 / 12.60 mm/inch

Net Weight : 13.5 / 29.75 kg/lbs
