TOA H-2WP EX IT ลำโพงติดเพดาน 40 วัตต์ 2-Way Surface-Mount Speaker System H-2WP EX IT ลำโพงแบบกันน้ำ งานนอกอาคาร ลำโพงติดเพดานแบบโดม

H-2WP

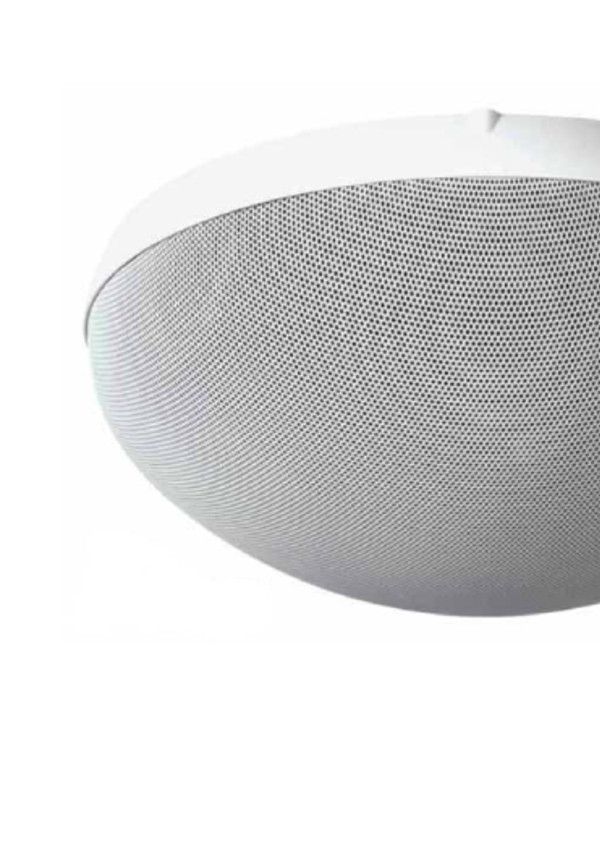

Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)

H-2WP 2-Way Surface-Mount Speaker System

H-2WP

Specification

• Enclosure Type Sealed type
• Power Handling 120 W (continuous program/4 Ω), 40 W (continuous pink noise/4 Ω)
• Rated Input 12 W (16 Ω, high impedance)
• Rated Impedance 4 Ω, 16 Ω
• 100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
• 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
• Sensitivity 88 dB (1 W, 1 m) at installation in 1/2 free sound field
• (Measured by installing the unit in the center of a wall.)
• Frequency Response 100 Hz - 20 kHz
• Dust/Water Protection IP64
• Speaker Component Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
• Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
• Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No. 24 - 14 equivalent)
• Finish Punched net: Steel plate (zinc plating), white, powder coating
• Frame: Fire-resistant ABS, white, paint
• Base frame: Stainless plate
• Dimensions 268 × 111 mm
• Weight 2.1 kg (including base frame)

Accessory Base frame ……1, Electrical box mounting screw ……1 set

Usable Electrical Box 1-gang type (with cover)(*1)

Other Feature Angle of speaker: 360 degrees adjustable in parallel to the mounting surface

(The angle should be kept within 45 degrees left and right each in a downward

direction for the wall installation.)

(*1) Without using an electrical box mounting the supplied base frame directly to a wall or ceiling allows the speaker installation.

Note: Do not install the unit where it is likely to be corroded in such places as indoor pools bathrooms
