รหัส : TZ-P406WIP1
ยี่ห้อ : TOA
รุ่น : TZ-P406WIP1
ราคาปกติ :  19,800.00 บาท
ราคาพิเศษ :  17,820.00บาท
ไฟล์เอกสาร : ip-1000_2_3_4.pdf
รายละเอียดย่อ :
TOA TZ-P406WIP1 IP Powered Column Speaker

ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747

รายละเอียดทั้งหมด

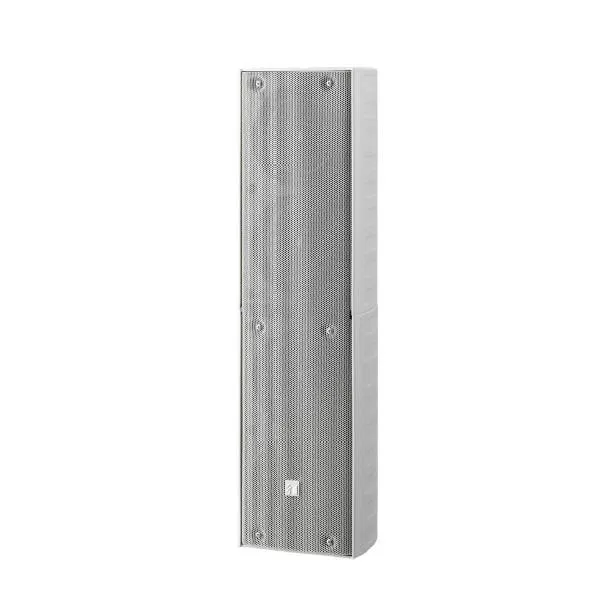

IP Powered Column Speaker TOA TZ-P406WIP1

- Speaker Unit: 4-inch (10cm) doubt cone type ×4, waterproof IP-65.

- Power Source: DC-24V/2.7A.

- Power Consumption: 1.85 W.

- Color: White.

- Can override and incorporate with local PA system without affect the central broadcast.

- Local line input of IP powered speaker allow the speaker to broadcast messages from both network and local input with different priorities, ideal for classroom application.

- With built-in amplifier, allow the speaker to chain with one more ordinary speaker to provide larger coverage.

- Allow easy system expansion without difficult wiring and installation work.

Specifications

ModelTZ-P406WIP1
Speaker Unit4-inch (10cm) doubt cone type ×4, waterproof IP-65
Power SourceDC-24V/2.7A
Power Consumption1.85 W
Impedance4Ω 40W
Sensitivity92 dB (1W, 1m)
Frequency Response150Hz -13kHz
Input TerminalEuropean standard 2 Pins
Network Input1Vrms (Max:2Vrms), Unbalanced, 10kΩ
Network I/F10BASE-T/100BASE-TX, Auto Negotiation
Network ProtocolUDP, ARP, HTTP, ICMP, IGMP
Operation Temperature-20°C to +40°C
Operation HumidityBelow 90% RH (no condensation)
FinishEnclosure: HIPS, white
Punched Net: Surface-tread steel plate, white, paint
Speaker Bracket: Aluminum die-cast, white, paint
Joint Bracket, Wall Bracket: Steel plate, t1.6, white, paint
Dimensions135 (W) x 498 (H) x 128 (D) mm
AccessorySpeaker bracket x1, Joint bracket x1, Wall bracket x1,
Fixing bolt M5 60 x1, Hexagon bolt M6 2 (with plain
washer and spring washer) x2, Hexagon M8 15 x1,
2P terminal block x2
