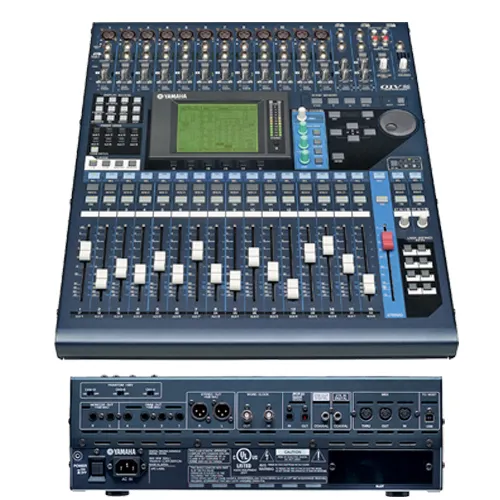

                                                      YAMAHA 01V96-VCM Precise 24-bit/96-kHz audio and high-performance head amps

Features

• Precise 24-bit/96-kHz audio and high-performance head amps,
• Generous mixing capacity with up to 40 simultaneous inputs and 18 mix buses (18 buses: 8 group buses, 8 auxiliary buses,
• and a stereo bus) in a compact rack-size mixer.
• Digital I/O via 8-channel optical ADAT and coaxial 2-track inputs and outputs.
• I/O expansion slot accepts mini-YGDAI cards for up to 16 additional channels of I/O in a variety analog or digital formats.
• Powerful channel functions with flexible control and digital patching capability.
• Four advanced multi-effect processors at 44.1/48 kHz, or two at 88.2/96 kHz
• Comprehensive interface with large LCD, 100-mm motor faders, and dedicated scene memory keys.
• Versatile channel pairing and grouping functions enhance mixing efficiency.
• Compatible with both Windows or Macintosh versions of Studio Manager version2 Software, allowing your PC and Console
• to work together seamlessly.
• Easy integration with computer-based DAWs (Digital Audio Workstations) or digital recorders.
• Cascade Link function allows two 01V96 consoles to be connected to provide up to 80 input channels.
• A new dimension of production power with the addition of Yamaha VCM Channel Strip and Rev-X effects.

 Specifications

Internal processing

• 32bit (Accumulator 58bit)

Number of scene memories 99

Sampling frequency

• Internal: 44.1kHz,48kHz,88.2kHz,96kHz
• External: Normal rate: 44.1kHz-10% - 48kHz+6%
• Double rate: 88.2kHz-10% - 96kHz+6%

Signal delay

• ≤ 1.6ms CH INPUT to STEREO OUT(@Sampling frequency = 48kHz)
• ≤ 0.8ms CH INPUT to STEREO OUT(@Sampling frequency = 96kHz)

Total harmonic distortion *1 Input Gain=Min.

• CH INPUT to STEREO OUT
• ≤ 0.05%, 20Hz to 20kHz @+14dBu into 600Ω
• ≤ 0.01%, 1kHz @+24dBu into 600Ω
• (@Sampling frequency = 48kHz)
• ≤ 0.05%, 20Hz to 40kHz @+14dBu into 600Ω
• ≤ 0.01%, 1kHz @+24dBu into 600Ω
• (@Sampling frequency = 96kHz)

Frequency response CH INPUT to STEREO OUT

• 0.5, -1.5dB, 20Hz - 20kHz @+4dBu into 600Ω
• (@Sampling frequency = 48kHz)
• 0.5, -1.5dB, 20Hz - 40kHz @+4dBu into 600Ω
• (@Sampling frequency = 96kHz)

Dynamic range (maximum level to noise level)

• 110dB typ. DA Converter (STEREO OUT)
• 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz
• 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz

Hum & noise level *2 -128dBu Equivalent Input Noise.

• (20Hz to 20kHz) -86dBu residual output noise. STEREO OUT
• Rs=150Ω STEREO OUT off.
• Input Gain=Max -86dBu (90dB S/N) STEREO OUT
• Input Pad=0dB STEREO fader at nominal level and all
• Input Sensitivity=-60dB CH INPUT faders at minimum level.
• -64dBu (68dB S/N) STEREO OUT
• STEREO fader at nominal level andone
• CH INPUT fader at nominal level

Crosstalk(@1kHz) Input GAIN=min

• 80dB adjacent input channels (CH1-12)
• 80dB adjacent input channels (CH13-16)
• 80dB input to output
• Power requirements
• Japan: AC100V 50/60Hz, 90W
• North America: AC120V, 60Hz, 90W
• Other Areas: AC220-240V, 50/60Hz, 90W

Dimensions

• (W x H x D) 436 x 150 x 540 mm (16-15/16" x 5-5/16" x 21-1/4")

Weight

• 15.0kg (33.1lbs.)
