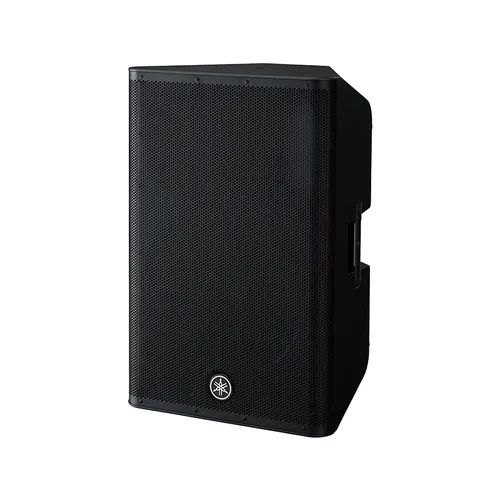

YAMAHA DXR15MKII
ราคาพิเศษสอบถามโทร 02-981-0944,080-614-4774,098-565-9747 |
รายละเอียดทั้งหมด
DXR15mkII ลำโพงแบบ 2 ทางพร้อมภาคขยายในตัว ขนาด 15 นิ้ว
DXR15mkII สามารถก้าวขึ้นเป็นผู้นำในตลาดสินค้าในระดับเดียวกันด้วยค่า SPL สูงสุดที่ 134 dB และประสิทธิภาพแบนด์วิดท์เต็มรูปแบบ ซึ่งได้รวมเอาแอมป์ Class-D อันทรงพลังและวูฟเฟอร์กำลังสูงเข้าไว้ด้วยกัน ผนวกกับเทคโนโลยีที่ล้ำสมัยของ Yamaha เมื่อเปิด D-CONTOUR ร่วมด้วย จะให้ความรู้สึกเหมือนกับว่าคุณกำลังใช้งานซับวูฟเฟอร์อยู่
ลำโพง YAMAHA DXR15mkII 2-Way Active Loudspeaker 15″
ลำโพง DXR15mkII เป็นลำโพงแบบ Active ในตระกูล DXR mkII ซีรีส์ (NEW2019) Bass-Reflex ABS Cabinet, ดอกลำโพงขนาด 15 นิ้ว Woofer เสียงแหลมขนาด 1.75นิ้ว Compression Tweeter, มีกำลังขับ 700 วัตต์ RMS 1100 วัตต์ Peak Biamplified Class-D Design, FIR-X Crossover
YAMAHA DXR15mkII 2-Way Active Loudspeaker 15″ 1100W
ลำโพง DXR15mkII เป็นลำโพงแบบ Active ในตระกูล DXR mkII ซีรีส์ Bass-Reflex ABS Cabinet, ดอกลำโพงขนาด 15 นิ้ว Woofer เสียงแหลมขนาด 1.75นิ้ว Compression Tweeter, มีกำลังขับ 700 วัตต์ RMS 1100 วัตต์ Peak Biamplified Class-D Design, FIR-X Crossover, XLR, 1/4″, and RCA Inputs, XLR Thru and Output
The Yamaha DXR15mkII is a 15″ 1100W 2-Way active loudspeaker which provides clear audio and extremely high output levels in an unobtrusive and durable design, ideal for live sound applications that require wide bandwidth audio reproduction. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The high-power 15″ woofer and 1.75″ compression tweeter offer high-resolution audio with a wide frequency response and deep bass. Integrated DSP uses a FIR-X linear phase filter for an ultra-smooth crossover, while the protection circuits optimize and protect driver performance.
The speaker has a biamplified Class-D design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. The integrated D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4″, and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.
The speaker can be placed on a floor or stage, but also has useful mounting options. A dual 35mm pole socket allows you to mount the speaker on top of a subwoofer with horizontal or 7° tilt toward the floor, while M10 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR15mkII ships with a power cord.
Features:
- 15″ powered loudspeaker with 1100W Class-D amplifier
- Achieves high SPL output with remarkable clarity throughout its frequency response
- 75″ neodymium high-frequency compression driver and high-output 15″ woofer which combine for a wide frequency response with powerful bass
- FIR-X tuning Proprietary sound-processing technology utilizing a linear-phase FIR filter delivers high-quality sound
- Precision 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable and compact ABS enclosure
- Symmetrical Design for mirror-mode floor monitoring
Specifications
PA Speaker
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1100 W Peak 700 W RMS |
| Amplifier Power Rating | LF: 950 W Peak 600 W RMS HF: 150 W Peak 100 W RMS |
| Amplifier Class | Class-D |
Drivers
| HF Driver | 1 x 1.75″ / 44.45 mm Compression Driver with 1″ / 25 mm Throat |
| LF Driver | 1 x 15″ / 38.1 cm Woofer |
| LF Voice Coil | 2.5″ / 6.35 cm |
| Magnet | HF: Neodymium LF: Ferrite |
Performance
| Frequency Range | 49 Hz to 20 kHz -10 dB |
| Maximum SPL | 134 dB SPL |
| Coverage Angle | 90° H x 60° V (Horn) |
| Input Sensitivity | Line Input: +1 dBu (Max) Mic Input: -32 dBu (Max) Line Input: -13 dBu (Max) Mic Input: -22 dBu (Center) Line Input: +11 dBu (Center) Line Input: -3 dBu (Center) |
| Max Input Level | Line Input: +24 dBu (Balanced) Mic Input: +20 dBu (Balanced) Line Input: +16 dBu (Unbalanced) |
| I/O Impedance | XLR Mic Input: 12 kOhms (Balanced, Mono) XLR Line Input: 8 kOhms (Balanced, Mono) 1/4″ TRS Line Input: 40 kOhms (Unbalanced, Stereo) 20 kOhms (Unbalanced, Mono) |
| Protections | AC Coupling, Crossover Overload, DC Fault |
Connectivity
| Audio I/O | 1 x XLR Input 2 x 1/4″ Input 2 x RCA Input 1 x XLR Thru 1 x XLR Link Output |
Signal Processing
| Crossover | 2.1 kHz |
| Filters | 2 x High-Pass: 100 Hz, 24 dB/Octave 120 Hz, 24 dB/Octave |
| Dynamic Processing | Compression, Multiband Limiter |
| Digital Signal Processing | 48-Bit DSP: FIR Filter, Venue Settings |
| Max Sample Rate/Resolution | 48 kHz / 24-Bit |
Power
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC Input |
| Power Consumption | 110 W |
Physical
| Mounting | 2 x M10 (Top) 1 x M10 (Rear) 1 x 1.38″ / 35 mm Pole Socket (Dual Angle) |
| Monitor Angle | 50° |
| Handles | 2 x Each Side |
| Cooling | Fan (Variable Speed) |
| Construction Material | ABS |
| Dimensions | 17.5 x 27.6 x 15.0″ / 445.0 x 700.0 x 380.0 mm |
| Weight | 48.1 lb / 21.8 kg |
