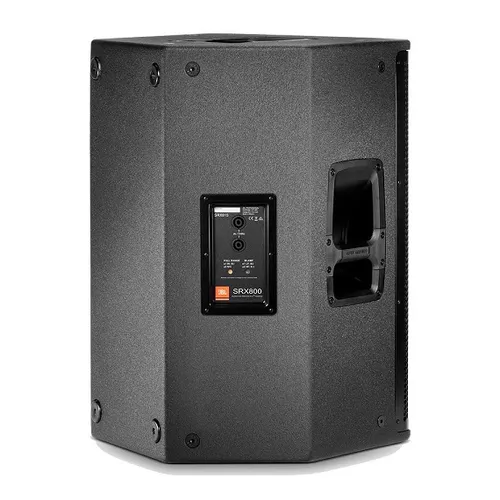

JBL SRX815 ตู้ลำโพง 15" Two-Way  Bass Reflex Passive System

15" Two-Way Bass Reflex Passive System

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

Feature.

Premium JBL Transducers

Rugged, versatile enclosures

Tunings available for Crown amps and dbx signal processors

Fully supported in Audio Architect

Power Handling: 3200W Peak, 1600W Program, 800W Continuous

Frequency Range: 41Hz-20kHz

Frequency Response: 56Hz-20kHz

Max SPL: 136dB

Coverage Pattern: 90 x 50

Amplification options: Passive/Bi-Amp

Specs.

System Type Passive 15”, two-way, bass-reflex

Maximum SPL Output 136dB

Frequency Range (-10dB) 41hz - 20khz

Frequency Response (- 3dB) 56hz - 20khz

Sensitivity (1W/1m) 95dB

System Power Rating 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance 8 Ohm

Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes Passive/Bi-Amp

LF Driver 2275H

HF Driver 2432H

Coverage Pattern 90 x 50

Crossover Frequency 1.9khz

Enclosure Material 18mm plywood

Monitor Angle 50°

Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points

Handles 3

Finish Obsidian Duraflex™ finish

Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

Dimensions (L x W x H) 18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm)

Weight 57.0 lbs (25.9kg)

Shipping Weight 67.0 lbs (30.4kg)
